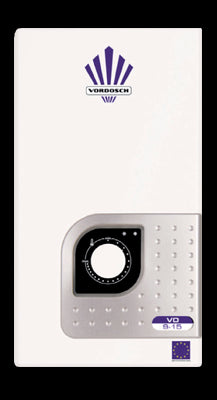

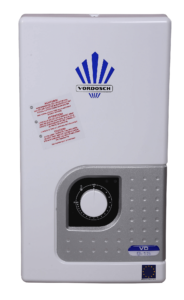

VD 9-15 -  3 PHASE

Technical Specification -

Rated Power – 9 to 15 kW

Rated Voltage – 400 V

Rated Current – 3×21.7 A

Fuse Rated Current – 40 A

Min. Connecting Wire Section – 4×4 mm2

Efficiency (30º C temp rise) – 5.4 L/min

Water Supply Pressure – 0.1 – 0.6 Mpa

Dimensions (HxWxD) – 440x245x120 mm

Weight – 4 Kg

Inlet & Outlet Section – 1/2”

Distance between inlet/outlet – 100mm

Safety Class – IP 25

Features -

Instant , continuous & unlimited flow of hot water even at high pressure

Ideal for: Bath Tubs, Shower Panels, Rain Showers, Body Jets

Saves up to 40% energy

Shock Proof

Microprocessor decides minimum or maximum operating kw depending on inlet temperature. Thus, resulting in substantial power saving

Works even with low water pressure (minimum working pressure.5 bar)

Precise Temperature settings using dial Knob (Allows to set the heater on full power or economic mode)

Compact Size

Electronically Controlled System ensures stability and modulation of water temperature from 30º to 60º C

Water resistant design

High resistant heating element

Seismic proof construction

Impact resistant in case of voltage fluctuation

Anti-air & dry run protection

Suitable for hard water

Desired temperature precisely delivered

Water flow sensor

Sleek and modern design

24 months warranty
