ASKON

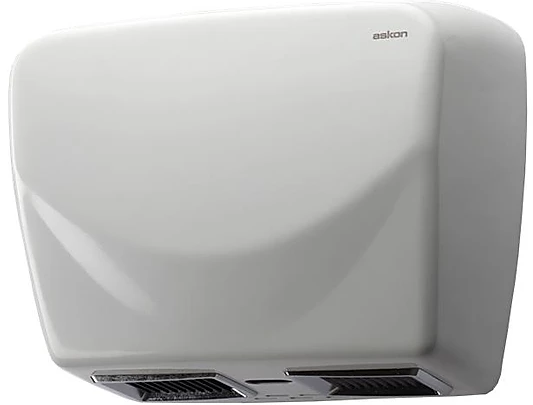

Hand Dryers - ASKON - AS- 25-IR (W) - Twin Blower
Hand Dryers - ASKON - AS- 25-IR (W) - Twin Blower
Askon-AS-25-IR-( W ) - Steel cover with white enamel coating for model
SPECIFICATION -
Fully Automatic twin blower hand dryer with IR Sensor
Outer Covers -
Steel cover with white enamel coating for model AS 25 - IR ( W )

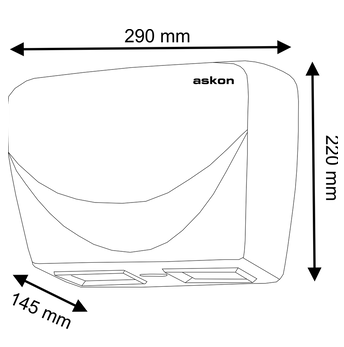

Size - H 220 x W 290 x D 145 mm
Type - Twin Blower with two motors and heating coils
Power - 1400 W
Power Supply - 230 VAC, 50Hz Single Phase
Heating element - Tow spiral wounds, Kanthal make with resetting thermal cut-offs and thermal fuse enhanced safety
Impellers - Tow aluminum impellers, Dynamically Balanced
Motors - Tow Shaded pole induction motors with thermal fuses for enhanced safety, 2850 RPM
Maximum air temperature at outlet - 70 C
Timing Protection - 45 seconds auto cut-off with patented safety shut-down feature to prevent misuse and vandalism of hand dryer
Safety & Anti-Vandalism Features -
75 seconds auto cut-off timer with 30 second safety shutdown * feature to prevent misuse and vandalism.
Motor equipped with thermal cut-off for overheating protection.
Heating coil equipped with thermal cut-off and thermal fuse for over heating protection.
