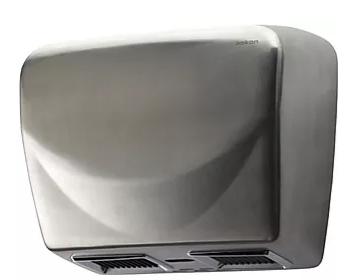

Hand Dryers - ASKON - AS 25-IR (SB) - Twin Blower

Askon-AS-25-IR-SB - Stainless steel cover with brush finish

SPECIFICATION -

Fully Automatic twin blower hand dryer with IR Sensor

Outer Covers -

Deep drawn Stainless Steel 304 with brush finish for model AS 25 - IR ( SB )

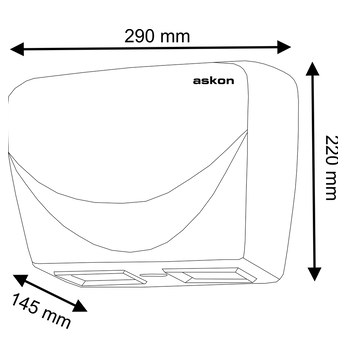

Size - H 220 x W 290 x D 124 mm

Type - Twin Blower with two motors and heating coils

Power - 1400 W

Power Supply - 230 VAC, 50Hz Single Phase

Heating element - Tow spiral wounds, Kanthal make with resetting thermal cut-offs and thermal fuse enhanced safety

Impellers - Tow aluminum impellers, Dynamically Balanced

Motors - Tow Shaded pole induction motors with thermal fuses for enhanced safety, 2850 RPM

Maximum air temperature at outlet - 70 C

Timing Protection - 45 seconds auto cut-off with patented safety shut-down feature to prevent misuse and vandalism of hand dryer

Noise Level - 75db @ 1 meter

Get LEED credits for Green Building certification

Deep drawn single piece outer cover,1.2 mm thick

Safety & Anti-Vandalism Features -

75 seconds auto cut-off timer with 30 second safety shutdown * feature to prevent misuse and vandalism.

Motor equipped with thermal cut-off for overheating protection.

Heating coil equipped with thermal cut-off and thermal fuse for over heating protection.
